7. Multi-Zone Model Analysis#

Module 7 is made and organized by Amber Sun.

7.1. Case Study File#

Download the new Rhino file for the single family with garage: here

7.2. Reference Starting Point#

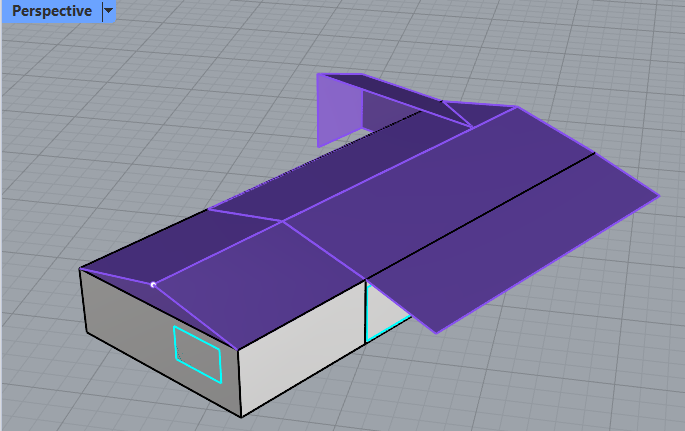

Check the reference image for what this should look like:

../_images/multizone1_1.png

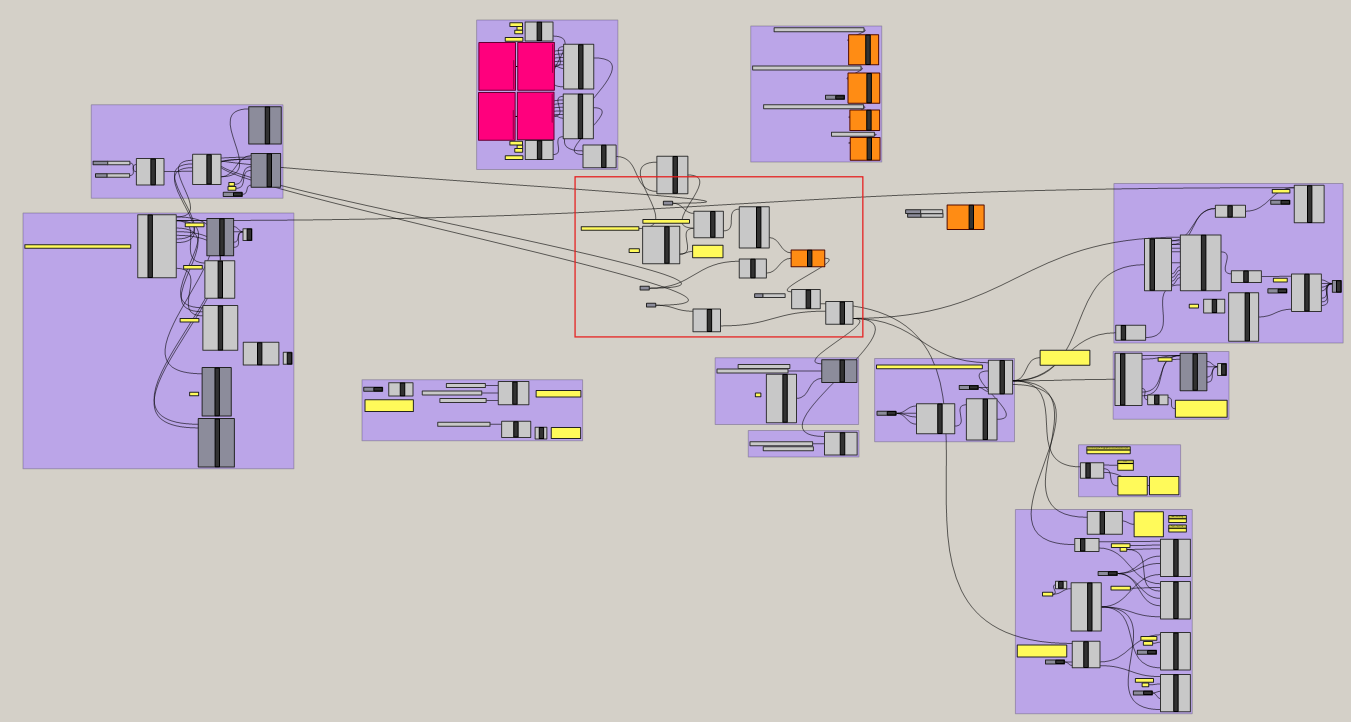

This should be your Grasshopper after completing module 6. In module 7, we will be getting a feel of multi-zone energy modeling by adding another room/zone: a garage.

../_images/multizone1_2.png

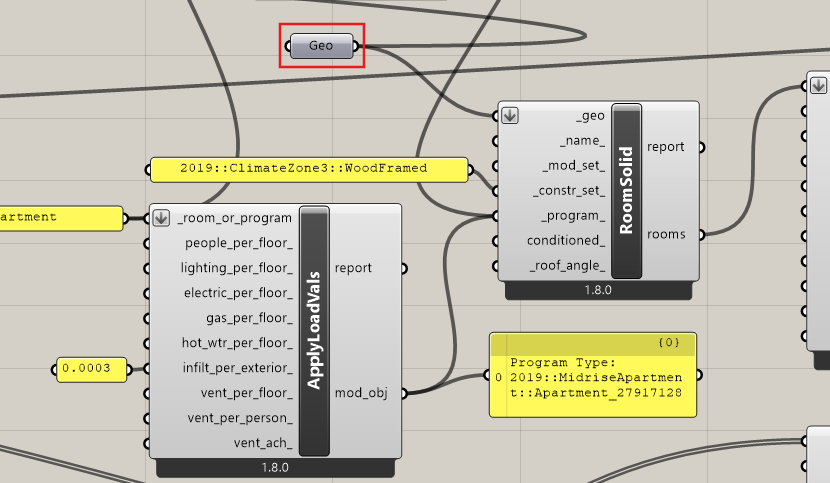

To start, delete the Geometry component that is connected to HB RoomSolid as shown below

../_images/multizone1_3.png
